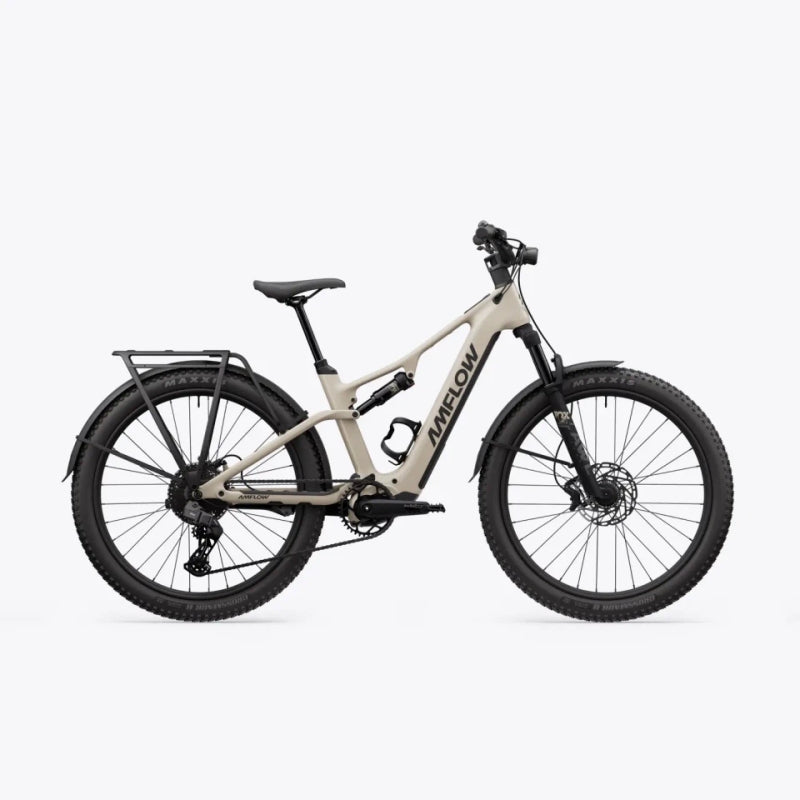

Amflow TL - Silica Beige PRE-ORDER

An SUV e-bike built for multiple scenarios , Amflow TL Carbon brings agility on trails, smoothness in the city, and stability to loaded touring.
A 2.9kg full-carbon frame keeps the bike exceptionally agile and durable, bringing the complete bike weight down to just 22.6kg.
Full Suspension Co-Developed With FOX
With 120mm of front travel and 105mm of rear travel, the full suspension system absorbs bumps in the city, stabilizes cargo on loaded rides, and stays supple over roots and rocks while holding strong on bigger hits.

Both front and rear wheels can be switched from 27.5-inch to 29-inch to match different terrain needs.

Frame:
- Amflow TL Carbon Frame
- Silica Beige
- Full Suspension, Removable Battery, Compatible With 27.5" and 29" Front and Rear Wheels
- Compatible With Front and Rear Mudguards
- Compatible With Rear Rack and Front Rack
- Compatible With Bike Trailers (Requires Trailer Thru-Axle)

Drive System:
Avinox M2 Drive Unit: Nominal 110N-m, Peak 125N-m
Screen: Avinox DPC100, 2-inch OLED Control Display
Battery: Avinox RS800 Battery (Removable)
Wireless Controllers: Avinox Wireless Controller x 2 (One on each side of the handlebar)
Charger: Avinox 4A Charger, 168W Output

Rear Shock: FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190x45mm
Fork: FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15x110mm Kabolt, 44mm offset

Drivetrain:
Rear Derailleur: TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur
Cassette: CS-M5243, 10-Speed, 11-43T
Chainring: Avinox Direct Mount Chainring (38T)
Chain: Avinox eGlide T Chain (10S/11S, 118 Links)
Crankset: Avinox SL Crankset (S/M: 155mm; L/XL: 160mm)

Brakes:
Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow
Tektro TR180-61E, Diam.180mm, 2.3mm thickness, with integrated tonewheel for Avinox

Wheels:
Front Wheel:
Amflow HTA-25 Front Wheel (27.5")
Tires: Maxxis 27.5x2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI
Rim: Alloy, 27.5", 25mm Inner Width, 32H
Hub: Alloy, 15x110mm Thru-Axle, 32H, 6-bolt
Rear Wheel: Amflow HTA-25 Rear Wheel (27.5")
Tires: Maxxis 27.5x2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI
Rim: Alloy, 27.5", 25mm Inner Width, 32H
Hub: Alloy, 12x148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub
Tires: Maxxis 27.5x2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Handlebar:
Amflow Touring Handlebar
S/M Size Frame: 720mm Width, 35mm Diameter, 93mm Rise
L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise
Grips: Amflow Enduro Grip 2
Stem: Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0degree)
Saddle: Amflow Touring Saddle
Dropper Post: Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm)
S/M Size Frame: 150mm
L/XL Size Frame: 170mm

Accessories:
Avinox Front Light
Amflow Touring Rear Rack, Compatible With MIK HD Standard
Amflow Elite MTB Pedals
Amflow Bottle Cage
Front Mudguard, Rear Mudguard
Amflow Touring Kickstand (348mm)
Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0degree)
Sate-lite M8 Rear Light With Integrated Reflector
Dropper Post Travel Reducing Spacer
Two Keys for Removable Battery
Torque Wrench
